This section allow user execute and auto save program and file before shutdown
system and UPS.

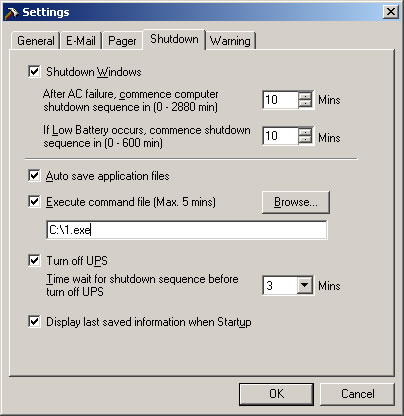

Picture 1: Shutdown
Shutdown Windows: Select this check box to enable operating system shut down.
After AC failure, commence computer xx Mins: Specify estimated UPS runtime (in
minutes) after AC failure.
If Low Battery occurs, commence shutdown xx Mins: Set some time for system's
continuous operation when battery low. For the setting value, the smaller is
the better.
AutoSave Files: Select this check box to enable auto-saving of unsaved data
when RUPS shuts down the computer system. All previously unsaved data is
written to files with the extension ¡®.TMP¡¯. A list of saved files may be found
by clicking ¡®closed applications¡¯ on the utility menu.
Attention: The RUPS will attempt to intelligently save open files
but cannot guarantee success with all file types.
Execute Command File: Select this check box to execute a program before system
shutdown. (Full path name to file must be specified.)
Attention: System shutdown will not commence until all
applications are closed. If applications do not terminate correctly shutdown
will be incomplete.
Turn off UPS: Set to turn off the UPS power supply.
Time wait for shutdown sequence before turn off UPS XX Mins Normally, Windows
shutdown time depends on system settings. Specify estimated system shutdown
time. (This function is only effective in Windows NT.)
Attention: Do not manually switch off the UPS when
power has failed or the system may not restart correctly when power returns.
Display Last Saved Information on Start Up: Select this check box to display a
list of temporary files (saved during the most recent power failure) upon Power
Manager startup.
