RUPS 2000 for Windows UPS Connection

• UPS Connection:
  • RUPS 2000 may be used to monitor a local or remote UPS .

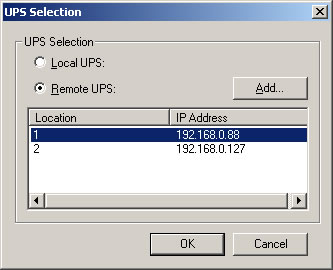

    Picture 1: UPS Selection

• Local UPS:
  • Select Local UPS.
  • Click OK.
  • Return to Control pad to implement all settings.
• Remote UPS:
  • Click "Add" to create a Remote UPS. (Edit window should appear as shown below.)
  • Complete all Remote UPS fields in this window and click OK.
  • Click on a Remote UPS to start remote monitoring.
  • For remove or edit the information that had add in, directly modify the information on it and press "OK".

    Picture 2: Add new Remote UPS

    Picture 3: Edit Remote UPS
