Warning messages (e.g. AC failure or low battery) may be sent to support staff
by E-mail.

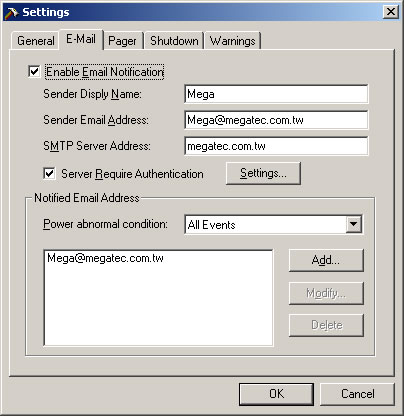

picture 1: E-mail
Enable Email Notification: Select the Enable E-mail check box to switch-on
notification by E-mail.
Sender Display Name: Setting name for message "Sender".
Sender Email Address: Setting the email address for sending message.
SMTP Server Address: Set-up SMTP mail server address by IP or server-name.(e.g.
210.71.130.1 or megatec.com.tw)
Server Require Authentication: Some Email Server required authentication by
password, user can set the password here.
Picture 2: Logon Information
Notified Email Address: Select the event item for sending first, and set the
email address for receiving message. Press "OK" to save all the setting .E-mail
may be sent in response to different events. More than one E-Mail address can
be specified in the form of a list separated by commas.
Power abnormal condition: All Events/AC Failure/AC Power Restored/UPS Battery
Low/Recovered from Low Battery.
Press "Add/Modify/Delete" button to edit email address.
For sending all events to the same email account, select "All Events" and type
the receiving email address.
Picture 3: Email Notification

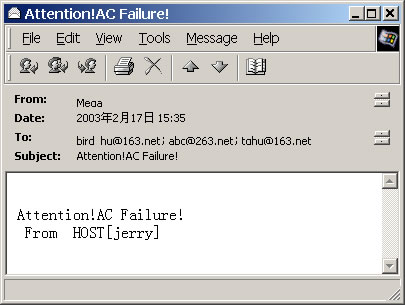

Following picture is the email contents that sent automatically by "RUPS200":
