In this function, the users can set the messages to the system
administrator by pager. The configuration's mode and screen is as below.

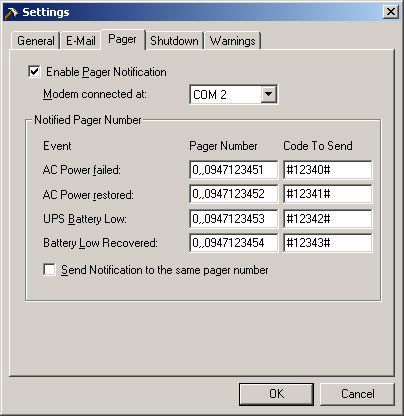

Picture 1: Pager
Enable Pager Notification: The users can set whether or not enable pager
function.
Modem connected at: set the communication port, which connects with the Modem.
The setting value is COM1-COM4.
Pager Number: Input the pager number directly if you are using the special line
( i.e. the line which has no use for a switchboard.). If necessary, please
input the prefix code for outside line first. Then add "," for 0.5 second delay
time. At last, input the pager number.
Code To Send: Enter event description code.
Send through the same pager number: Select this check box to send all messages
to the same pager and enter the relevant pager number in the AC Failure field.
For instance: Set the Modem connect to COM2 and dial ¡°0¡± to access an outside
line, and pager number is ¡°0,947123456¡± and "#1234#"means AC power failed.
