RUPS 2000 for Windows Battery/AC/Countdown/Connection Status

• "AC Status", "UPS Battery Status", "UPS Connection Status" and "System Shutdown Countdown Timing" information depicted in the following pictures.

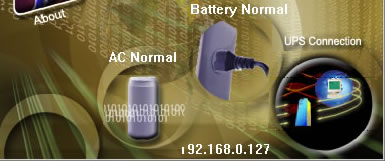

  picture 1: AC Normal & UPS Battery Normal

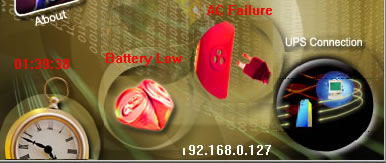

  picture 2: AC Fail & Battery Low/ System start counting down for shutdown

  AC Normal        AC Fail picture 3: AC Status

  Battery Normal       Battery Fail picture 4: Battery Status

  Monitoring local UPS (Show local computer com port name) Monitoring remote UPS (Show Remote UPS IP address) Connection error! Not monitoring UPS.

  picture 5: UPS Connection Status

  It will display the time of countdown and "Clock" icon on the left hand corner of main screen of RUPS when system is shutting down the system.

  picture 6: Shutdown Countdown Time
