This option sets the Email details for NetProbe Lite.
E-mail Settings
E-mail Server
Enter the email server.
Sender’s Email Address
This item determines NetProbe Lite’s Email address.
Email Server Requires Authentication
If set to “YES”, the user will have to provide the account/password for accessing the Email server. Otherwise, enter “NO”.
Account Name
Enter the account (login) name for the email server (Maximum 32 characters).
Password
Enter the password for the above account name.
Send Email When Event Occurs
If set to “YES”, NetProbe Lite will send an email to the Recipient’s Email Address when an event occurs. Enter up to 8 recipient’s email address in the next section.
Recipient’s Email Address (for Event Log)
The user can determine which eight (8) email addresses will receive email notification when an event occurs.

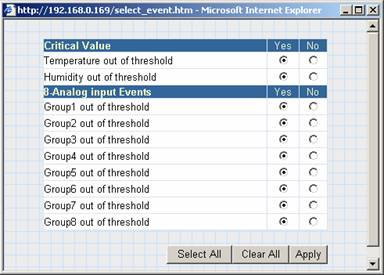

Events
This section determines the type of event an email is sent by NetProbe Lite. The lists of available events are similar to the Trap Notification event selection. NetProbe Lite will send the following email notification depending on which event has been selected.
Recipient’s Email Address (for Daily Report)
The user can determine which four (4) email addresses will receive a Daily Report from NetProbe Lite.
Account
Enter the email address of the daily report recipient.
Send Email for Daily Report (hh:mm)
To enable sending of a daily report, click “Yes” and enter the report time in 24hr format. The Daily report will include information from Event Log and Data Log.
Send Email When Data Log overflow (500 records)
This will send an email to the recipient notify that the recorded data has exceeded 500 items.
