RUPS 2000 for Windows Description

• The RUPS manager control pad should be displayed as shown below:

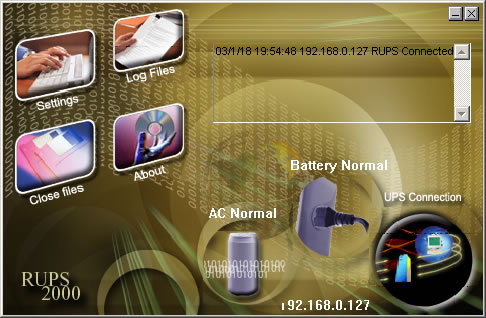

  Picture 1: AC & Battery Normal

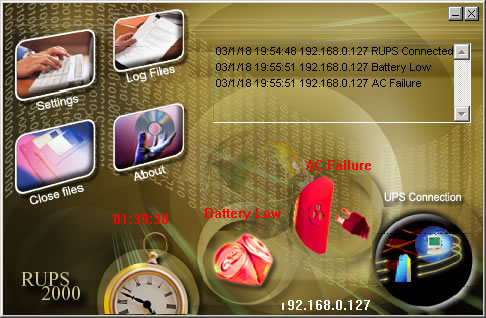

  Picture 2: AC Fail & Battery Low

• UPS Connections
  Click here to select monitor a local or remote UPS.
• Battery/AC/Countdown/Connection Status
  UPS Battery Status", "AC Status", "System Shutdown Countdown Timing" and "UPS Connection Status" information display in this area.
• Settings
  Click here to get the utility menu. Each parameter value will affect the normal operation of the RUPS 2000.
• Log Files
  Click here to get the status and event history information.
• Close files
  Click here to get the closed applications and auto-saved files information.
• About
  Click here to get the copyright and version information on RUPS 2000.
• Minimize
  Press and the RUPS 2000 manager screen will minimize onto the taskbar.
• Exit
  Press to exit RUPS manager. (Note : RUPS 2000 will continue to rue in the background to monitor the system UPS)
